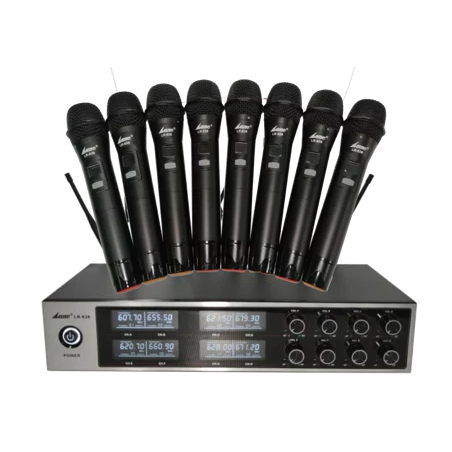

Lane Lr-638 Wireless Microphones

Lane LR-638

8PC Wireless Microphone System

• Lane LR-638 is a model of an 8-piece wireless microphone system.
• It features a frequency range of 610-690 MHz, allowing for clear audio transmission.
• The system is designed for use in various settings, including live performances, conferences, and presentations.

The Lane LR-638 is a popular choice for those seeking a reliable and affordable wireless microphone system. It offers a good balance of features and performance, making it suitable for a wide range of applications. The system is often used by musicians, speakers, and event organizers.

System specification.

Receiver

Frequency range: 610-690 MHz (other bands can be customized) Receiving mode: Secondary superheterodyne frequency conversion

Antenna impedance: 50 0

Maximum frequency deviation: 75 kHz

De-emphasis: 12 us. Frequency stability: $10.002%

Receiving sensitivity: <-105dBm

Signal to noise ratio: 279 db.

T.H.D.: <5%

Frequency response: 50 hz-16 kHz

Max output level: 0.95V Net noise blockage: 210dB

Power consumption: 5 W

Power: external power adaptor

Receive distance: 50M

Transmitter

RF frequency: 610-690 MHz (other bands can be customized) Transmit mode: wireless micropower

Antenna impedance: 500

Modulation mode: FM

Maximum frequency deviation: 75 kHz

Pre-emphasis: 12 us

Input impedance: 600 02

Frequency stability: 10 ppm. RF power: 10 mW

Fake signal radiation: lower than60 dB

Signal to noise ratio: >70 db

Frequency response: 50 hz-16 khz T.H.D.: 55%

Power consumption: about 120 mA Power: 1.5V AA * 2

Whats In the Box

1x Receiver

1x Power Adaptor

1x Instruction Manual

1x 0.5m 6.3mm to 6.3mm Cable

8x Antennas

8x Handheld Transmitters
